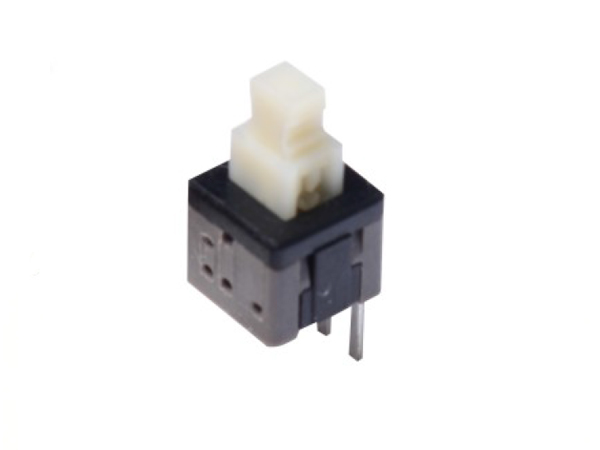

PUSH SWITCH
1.Material/Plated
See the drawing
2.Electrical Performance
2.1 Rated Voltage: 12V AC
2.2 Rated Current: 20mA
2.3 Contact Resistance: 100mΩ Max.
2.4 Insulation Resistance: 100MΩ Min.
2.5 Dielectric Strength: 250V AC
3.Mechanical Performance
3.1 Operating Force: See the drawing
3.2 Travel: See the drawing
3.3 Durability: See the drawing
4.Operating Temperature: -25°C To +85°C
