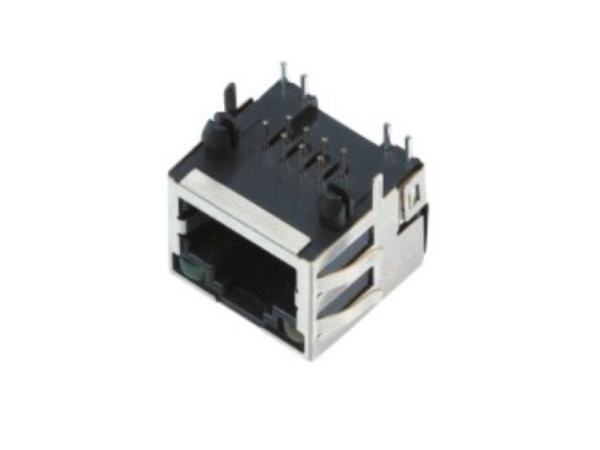

RJ45 Connector
1.Material/Plated
1.1 Housing:LCP,Black UL 94V-0.
1.2 Terminal:Copper Alloy,Gold Flash Plated
Nickel Underplated Overall
1.3 Shell:Stailess steel,Nickel plated
2.Electrical Performance
2.1 Rated Voltage: 125V AC
2.2 Rated Current: 1.5A
2.3 Contact Resistance: 50mΩ Max.
2.4 Insulation Resistance: 1000MΩ Min.
2.5 Dielectric Strength: 1000V AC
3.Mechanical Performance
3.1 Insertion Force: 22N Max.
3.2 Durability: 750 Cycles
4.Operating Temperature: -25°C To +85°C
