  • TP6151L

TP6151L

Tact Switch With LED:1.Material/PlatedSee the drawing2.Electrical Performance2.1 Rated Voltage: 12V AC2.2 Rated Current:
全国热线

13922534862

产品详情 / Introduction

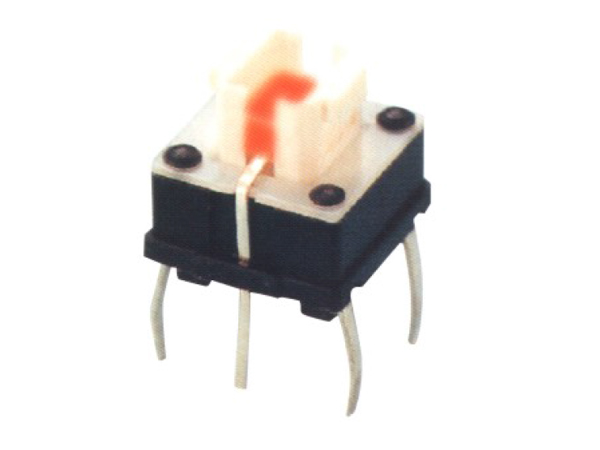

Tact Switch With LED:

1.Material/Plated

See the drawing

2.Electrical Performance

2.1 Rated Voltage: 12V AC

2.2 Rated Current: 20mA

2.3 Contact Resistance: 100mΩ Max.

2.4 Insulation Resistance: 100MΩ Min.

2.5 Dielectric Strength: 250V AC

3.Mechanical Performance

3.1 Operating Force: See the drawing

3.2 Travel: See the drawing

3.3 Durability: See the drawing

4.Operating Temperature: -25°C To +85°C
