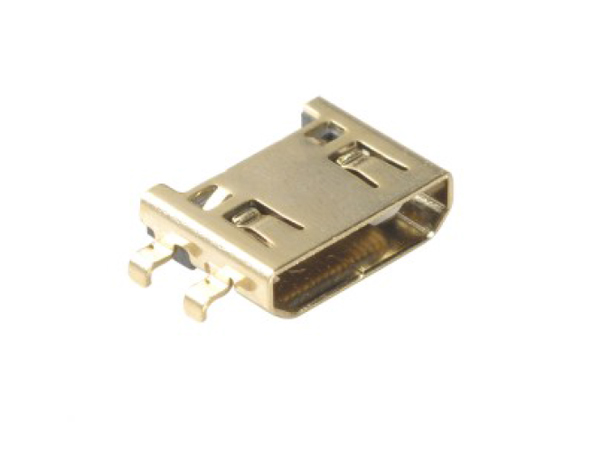

HDMI C TYPE Female Connector
1.Material/Plated
1.1 Housing:LCP,Black UL 94V-0.
1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,
Tin Plated At Solded Area, Nickel Underplated Overall
1.3 Shell:Copper Alloy,Nickel Plated
2.Electrical Performance
2.1 Rated Voltage: 40V AC
2.2 Rated Current: 0.5A
2.3 Contact Resistance: 30mΩ
2.4 Insulation Resistance: 1000MΩ
2.5 Dielectric Strength: 500V AC
3.Mechanical Performance
3.1 Insertion Force: 44.1N Max.
3.2 Withdraval Force: 7-25N
3.3 Durability: 5000 Cycles
