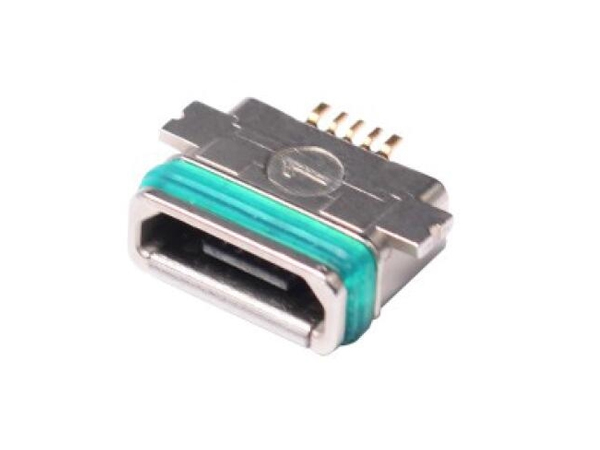

Micro USB:
1.Material/Plated
1.1 Housing:LCP,BLACK UL 94V-0.
1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,
Tin Plated At Solded Area, Nickel Underplated Overall
1.3 Shell:Stailess steel,Tin plated,Nickel Underplated Overall
2.Electrical Performance
2.1 Rated Voltage: 30V AC
2.2 Rated Current: 1.0A
2.3 Contact Resistance: 30m? Max.
2.4 Insulation Resistance: 1000M? Min.
2.5 Dielectric Strength: 100V AC
3.Mechanical Performance
3.1 Insertion Force: 35N Max.
3.2 Withdraval Force: 8-35N
3.3 Durability: 10000 Cycles
4.Operating Temperature: -25°C To +85°C
